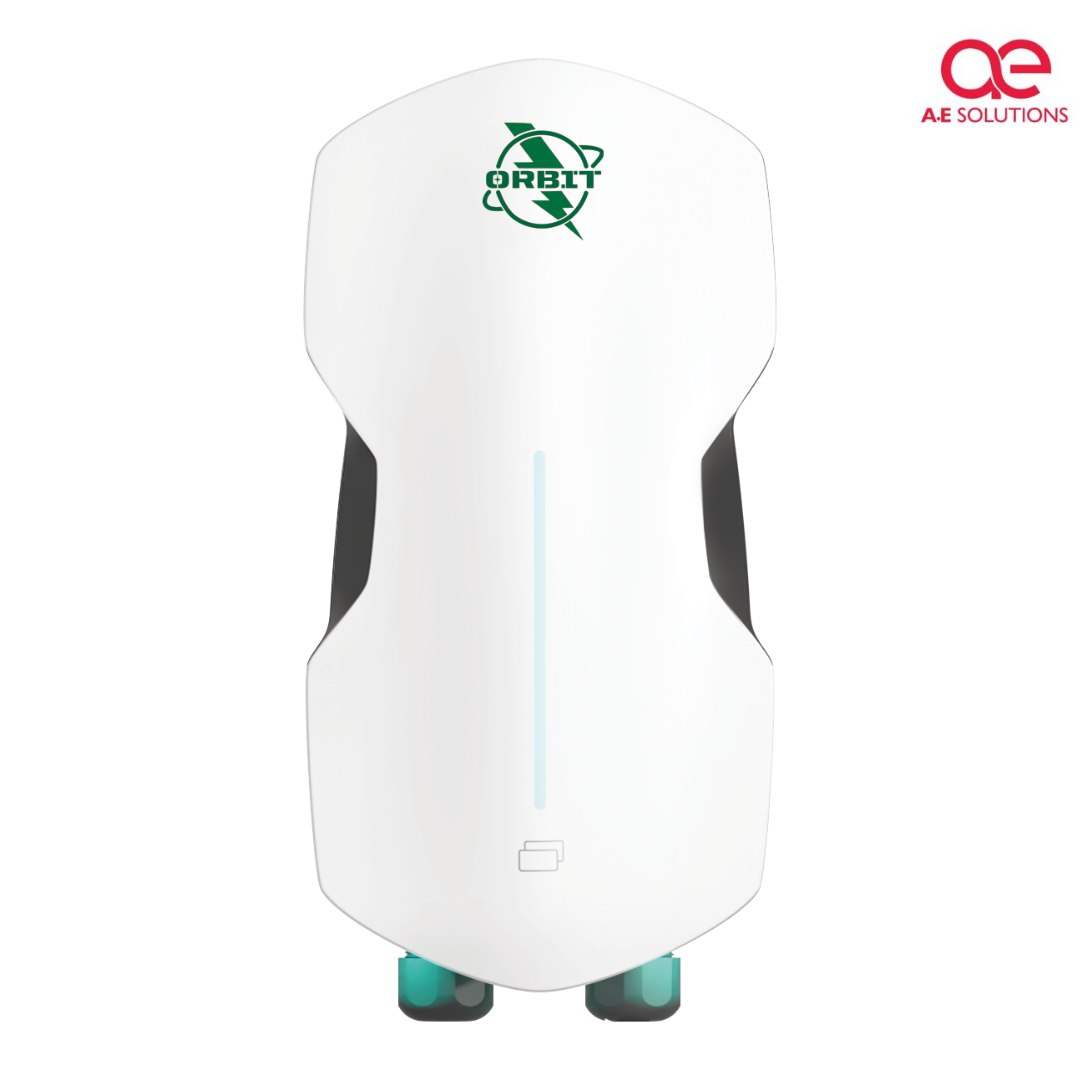

Orbit Race Series 22kW AC EV Charger – 3-Phase Smart Charging Station

Orbit Race Series 22kW AC EV Charger – 3-Phase Smart Charging Station

Rs.199,999.00 PKR
Rs.210,000.00 PKR Rs.199,999.00 PKR
Sale Sold out

Experience ultra-fast charging capabilities with the Orbit Race R22 AC EV Charger, available at A.E Solutions. Engineered for high-demand residential and commercial environments, this premium 22kW 3-phase charging station delivers rapid power, advanced smart connectivity, and rugged durability to keep your Electric Vehicle (EV) ready for the road.

🌟 Key Features

  • Ultra-Fast 3-Phase Power: Delivers a massive 22kW (32A) of three-phase power with an exceptional 99% efficiency, significantly reducing your charging time.

  • Smart Control & Connectivity: Take full control of your charging sessions through the ORBIT EV App. Stay connected anywhere with versatile options including Ethernet, 4G, Bluetooth, and Wi-Fi.

  • Flexible Charging Modes: Supports multiple user authentication methods including RFID Card access, convenient Plug-and-Charge, and Scheduled Charging to take advantage of off-peak electricity rates.

  • Heavy-Duty Weather Durability: Designed for rigorous indoor and outdoor use. The robust IP55 rating provides high-level protection against harsh weather, dust, and water ingress.

  • Globally Certified Quality: Fully compliant with international safety and design standards, holding official CE (TÜV), CB, CNAS, and CMA certifications.

  • Comprehensive Safety: Built with ultimate peace of mind featuring protections against overcurrent, overvoltage, undervoltage, short circuits, overloads, over-temperature, ground faults, leakage, and lightning strikes.

📊 Technical Specifications

Feature Specification
Product Model PAC0220R-P-EU
Power Rating Three-phase up to 22kW / 32A
Input Voltage Three-phase: 400VAC±15% (IEC) / 380VAC±15% (GB)
Efficiency 99%
IP Rating IP55
Cable Length Standard 5m
Connector Type IEC: Type 2, GB: GB, UL: Type 1
Certifications CE (TÜV), CB, CNAS, CMA
Design Standards IEC 61851-1, UL 2231-2, GB/T 20234.1/2, GB/T 18487.1
Dimensions (H×W×D) 208mm × 153mm × 418mm
Net Weight ~ 4.5kg (Including standard cable)
Operating Temp. -30°C to +50°C
Mounting Options Wall-mounted or Pedestal
Communication OCPP 1.6 / OCPP 2.0.1 / Modbus RTU RS485

What's in the box: Orbit Race R22 AC EV Charger (22kW), 5m Standard Cable, and Installation Guide.
  • 7 Days Check Warranty
  • Estimated Shipping Time: 48 to 72 Hours
  • Heavy weight parcels will be dispatch through Cargo Service
  • You Have to Pay Partial Payment in Advance for Order Confirmation
  • Full Advance Payment Required for Order Processing Batteries, Inverters, And Structures.
  • Customer will pay Cargo charges on delivery for heavy shipments
